Catalog

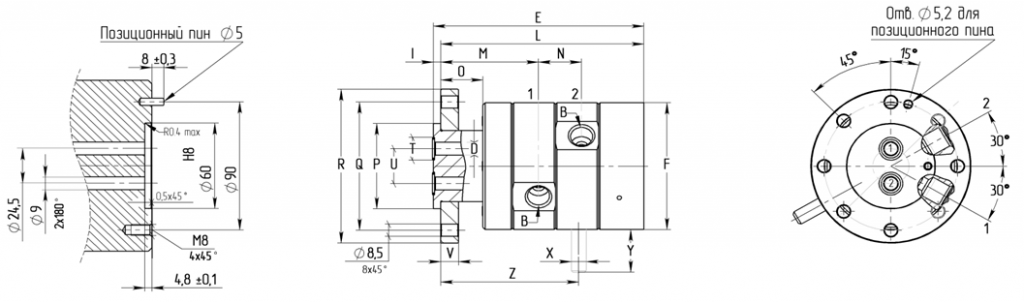

| Order Code | Dual Stream Connection | |||||||||||||||||||
| B | Ø D | E | Ø F | I | L | M | N | O | Ø P | Ø Q | Ø R | Ø T | Ø U | V | Ø X | Y | Z | Kg | ||
| H2-52-3R | G 3/8" | 9 2х180° | 142 | 89 | 5 | 137 | 65,9 | 29 | 28,4 | 60 | 90 | 108 | 16 | 24,5 | 12 | 10 | 30 | 93 | 4,8 | |

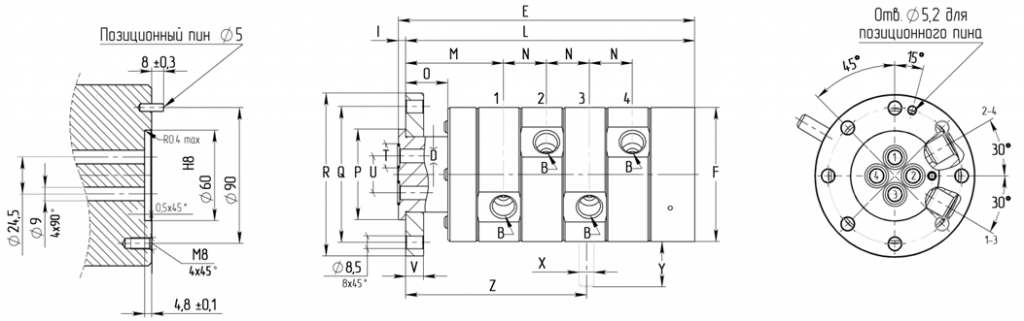

| Order Code | Four threaded connection | |||||||||||||||||||
| B | Ø D | E | Ø F | I | L | M | N | O | Ø P | Ø Q | Ø R | Ø T | Ø U | V | Ø X | Y | Z | Kg | ||
| H4-52-3R | G 3/8" | 9 4х90° | 200 | 89 | 5 | 195 | 65,9 | 29 | 28,4 | 60 | 90 | 108 | 16 | 24,5 | 12 | 10 | 30 | 122 | 6,0 | |

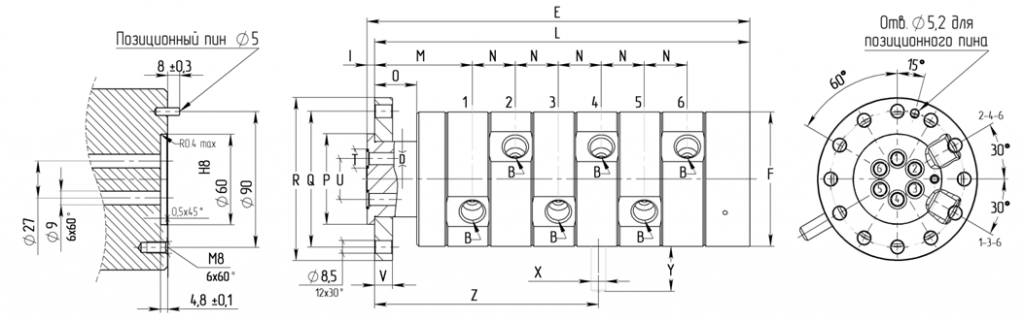

| Order Code | Six-thread connection | |||||||||||||||||||
| B | Ø D | E | Ø F | I | L | M | N | O | Ø P | Ø Q | Ø R | Ø T | Ø U | V | Ø X | Y | Z | Kg | ||
| H6-52-3R | G 3/8" | 8 6х60° | 258 | 89 | 5 | 253 | 65,9 | 29 | 28,4 | 60 | 90 | 108 | 12,6 | 27 | 12 | 10 | 30 | 151 | 7,5 | |
